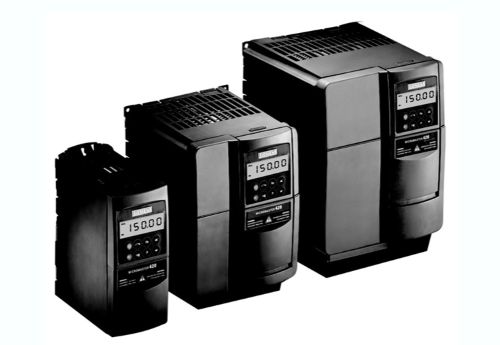

MICROMASTER 420 Inverter-VFD Siemens 6SE6420-2AB17-5AA1
The Siemens MICROMASTER 420 Inverter-VFD 6SE6420-2AB17-5AA1 is a type of inverter or variable frequency drive or inverter, designed used for controlling the speed of AC motors by varying the frequency and voltage of the power supply.It offers features like adjustable acceleration,deceleration ramps, torque control, and various speed control modes like V/f control and vector control.
Features:
V/f control, built-in protective functions, and communication capabilities.
Technical Specifications:
- Model: 6SE6420-2AB17-5AA1.
- Power: 75kW (1 HP).
- Input Voltage: 1-phase 200-240V AC.
- Output Voltage: 3-phase 230V AC (for a standard AC induction motor).
- Output Current: 9A.
- Control: V/f characteristic, FCC (Flux Current Control).
- Frequency: 0Hz to 650Hz (speed control range).
- Protection: IP20 (enclosure).
- Ambient Temperature: -10°C to 50°C.
- Dimensions: Frame Size A – 73mm Wide x 173mm High x 149mm Deep.
- Mounting: DIN rail or 2 x M4 bolts.
- Communication: RS-485, optional RS-232.
- Filtering:No EMC filter .
- Digital Inputs:3 fully programmable isolated digital inputs.
- Analog Input:1, for set point or PI controller.
- Relay Output:1, programmable.
- Analog Output:1, programmable (0mA to 20mA) .
