Beckhoff EK1101-0050 EtherCAT Coupler Module for I/O Interface

Description

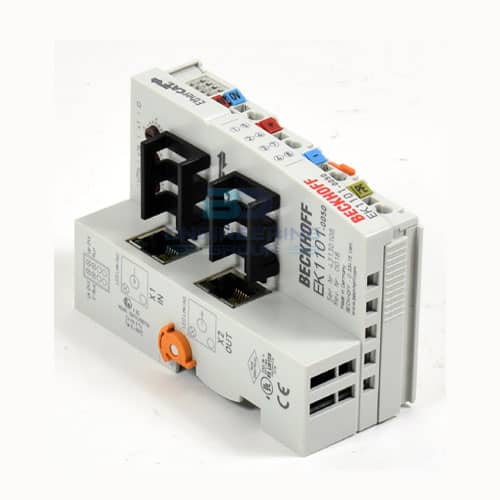

Beckhoff EK1101-0050 EtherCAT Coupler

The Beckhoff EK1101-0050 is a specific model of EtherCAT Coupler module for the Beckhoff EtherCAT Terminal system (EL terminals). This module serves as the interface between a standard Ethernet network running the EtherCAT protocol and the modular, slice-based I/O terminals. It effectively converts Ethernet physical signals into the internal electrical signals used by the Beckhoff I/O terminals.

Working principle?

• EtherCAT Slave: The EK1101-0050 acts as the first device, or “slave,” in the EtherCAT network segment. The EtherCAT Master (e.g., a Beckhoff Industrial PC or a third-party EtherCAT PLC) connects to Port 1.
• Daisy Chain: Port 2 allows the user to continue the EtherCAT network to the next device, simplifying machine wiring and eliminating the need for external switches.
• E-bus Conversion: The coupler extracts the I/O data intended for its connected terminals from the fast EtherCAT telegram and places it onto the internal E-bus.

Summery:

This specific coupler is a fundamental component for building a highly modular, fast, and deterministic I/O system based on the Beckhoff EtherCAT standard. The I/O data is then distributed across the high-speed E-bus to all the connected I/O terminals (analog input, digital output, safety, etc.) which snap onto the coupler.
