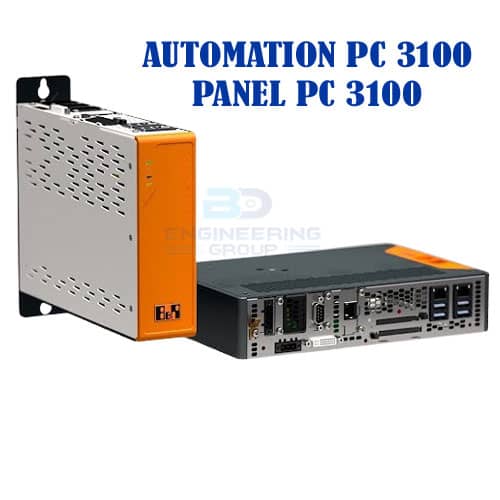

B&R Industrial Automation PC 3100 and Panel PC 3100

Description

B&R Industrial Automation PC

The B&R Automation PC 3100 and Panel PC 3100 are B&R’s third-generation industrial PC with high-performance IPC (Industrial PC) line. They are designed for demanding industrial applications requiring high processing power, flexible configuration, and long-term availability.

The Panel PC 3100 integrates the high-performance PC core directly behind a touchscreen display. It is designed for panel mounting (flush with the enclosure door) where the operator directly interacts with the HMI application.

Automation PC 3100 (Box PC)

• Interface: Connects to external monitors, HMIs, or Panel PCs via standard interfaces (DisplayPort, DVI, or proprietary HMI links).
• Role: Acts as a powerful central control unit running operating systems (Windows/Linux) and B&R’s Automation Runtime (for PLC and motion control logic).

Panel PC 3100 (HMI Integrated)

• Form Factor: All-in-one unit combining the display and the computer.
• Display: Available in various sizes (e.g., 10.1″ up to 21.5″) with multi-touch (projected capacitive) technology.
• Role: Functions as a high-end HMI/SCADA client while simultaneously running the PLC/Motion control logic

APC & PPC 3100 Configuration

• Processor: Utilize high-performance Intel Core i-series processors (e.g., Core i3, i5, i7) from a modern generations
• Connectivity: Feature multiple Gigabit Ethernet ports (often 2 or 3) and support for advanced industrial protocols like POWERLINK
• Storage: Support fast, reliable storage options, typically using 2 SSDs (Solid State Drives) for high data integrity and speed.
• Software: Fully compatible with B&R Automation Studio for programming, enabling a modular and integrated control approach.

In Summery

If you need a powerful PC inside the cabinet, choose the Automation PC 3100. If you need a powerful PC integrated with an operator display on the cabinet door, choose the Panel PC 3100.
